S&S Cycle 53-80 BT Oil Passage Drill Jig

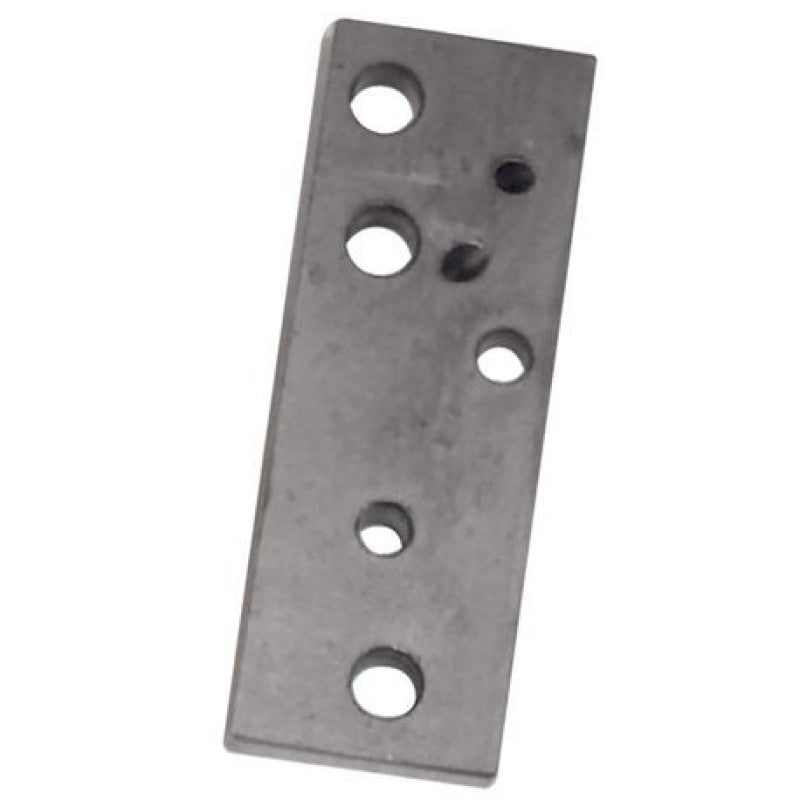

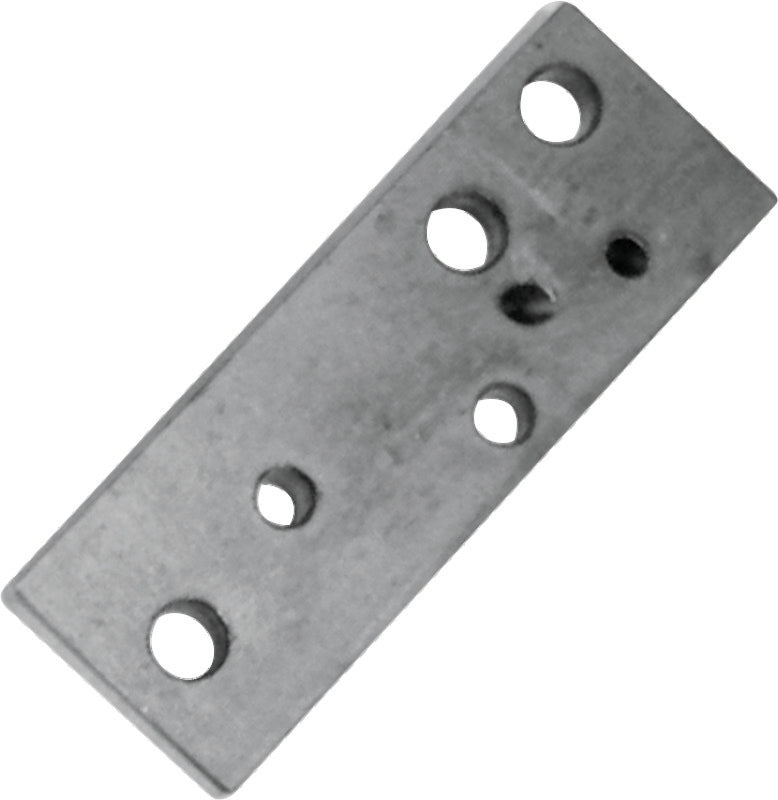

The S&S crankcase oil passage drilling jig is used to perform crankcase drilling modifications when installing an S&S oil pump assembly on early big twin crankcases. Made of hardened steel for durability, this fixture enables the builder to do four modifications.

• Primary chain oil supply passage from the breather valve gear cavity to the back side of the oil pump body on late generator and early alternator crankcases


• Pressure relief passage from behind the main oil pressure valve to the gear cavity on alternator crankcases


• Crankshaft and main bearings supply passage on early alternator crankcases


• Crankshaft and main bearings supply passage on generator crankcases

Fits:
Harley Davidson_FLST Heritage Softail Base 1986 to 1990
Harley Davidson_FLSTC Heritage Softail Classic Base 1988 to 1991
Harley Davidson_FLSTF Fat Boy Base 1990 to 1991
Harley Davidson_FXLR Low Rider Custom Base 1987 to 1991
Harley Davidson_FXRS Low Glide Base 1982 to 1991
Harley Davidson_FXRT Sport Glide Base 1983 to 1991
Harley Davidson_FXS Low Rider Base 1977 to 1982
Harley Davidson_FXSB Low Rider - Belt Base 1983 to 1985
Harley Davidson_FXSTS Springer Softail Base 1988 to 1991
Harley Davidson_FXWG Wide Glide Base 1980 to 1986
