Overview

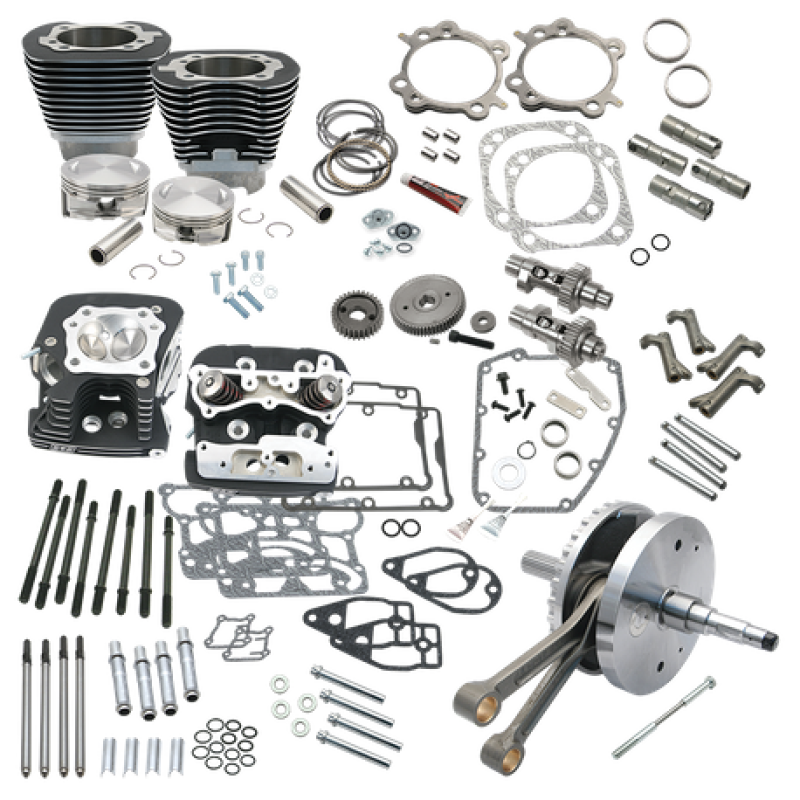

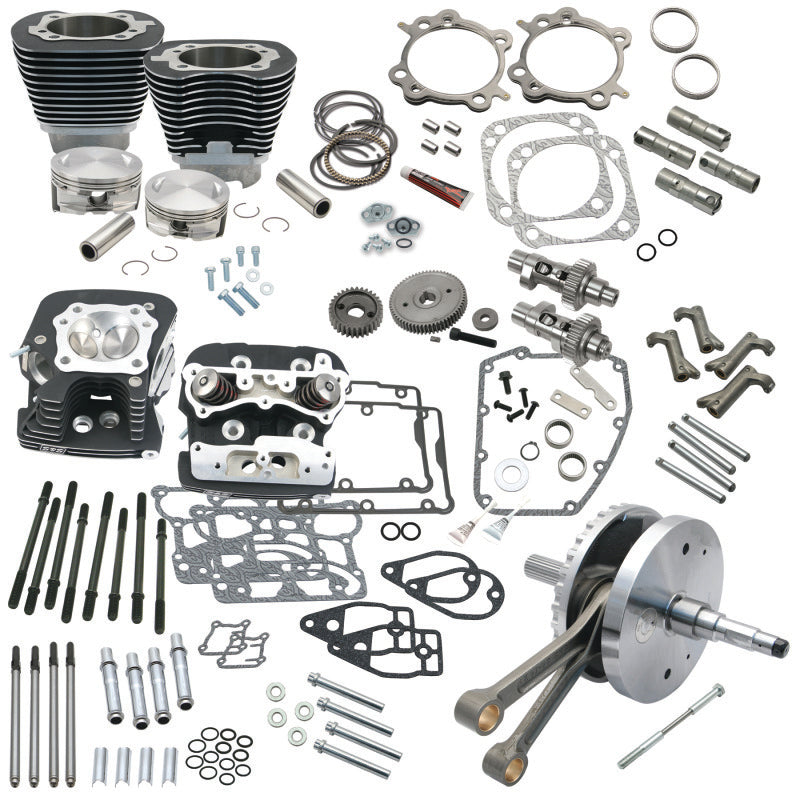

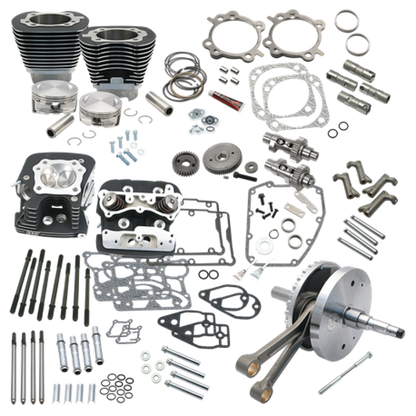

This 124" big bore/stroker Hot Set Up Kit® transforms a stock engine into a 124" monster. This kit includes S&S 4-1/8" bore pistons, big bore cylinders finished in wrinkle black powder coat, a dynamically balanced 4-5/8" stroke three piece flywheel assembly complete with S&S heavy duty connecting rods and intergal mainshafts, S&S 640 gear drive Easy Start camshafts, S&S chromoly steel adjustable pushrods, S&S premium tappets,S&S Super Stock 91cc cylinder heads. When installed the kit yeilds a 124" engine with a compression ratio of 11:1. Although the engine is .960" taller than stock, there are no frame clearance problems, and a stock EFI Throttle body will fit because the manifold mounting surfaces of the heads have been specially machined to fit a stock length manifold. No fuel or ignition system is included. However, for the best results, a larger EFI throttle body, performance intake and performance exhaust are recommended. The EFI system must be recalibrated. Although not mandatory, we recommend adding an oil cooler to bikes ridden in warmer climates. S&S does not recommend compression ratios higher than 10:1 for Tri Glide® or other three wheel models (including conversions) due to extra loads caused by the lugging nature of these bikes. Detonation and subsequent engine damage may result.
Fits:
Harley Davidson_FLHR Road King Base 2006 to 2017
Harley Davidson_FLHRC Road King Classic Base 2007 to 2017
Harley Davidson_FLHRS Road King Custom Base 2006 to 2007
Harley Davidson_FLHT Electra Glide Standard Base 2006 to 2009
Harley Davidson_FLHTC Electra Glide Classic Base 2007 to 2013
Harley Davidson_FLHTCU Electra Glide Ultra Classic Base 2007 to 2017
Harley Davidson_FLHTCUTG Tri Glide Ultra Classic Base 2009 to 2013
Harley Davidson_FLHTKL Ultra Limited Low Base 2015 to 2017
Harley Davidson_FLHX Street Glide Base 2006 to 2017
Harley Davidson_FLHXS Street Glide Special Base 2014 to 2017
Harley Davidson_FLHXXX Street Glide Trike Base 2010 to 2011
Harley Davidson_FLRT Freewheeler Base 2015 to 2017
Harley Davidson_FLSS Softail Slim S Base 2016 to 2017
Harley Davidson_FLSTC Heritage Softail Classic Base 2006 to 2017
Harley Davidson_FLSTF Fat Boy Base 2006 to 2017
Harley Davidson_FLSTFB Fat Boy Lo Base 2010 to 2017
Harley Davidson_FLSTFBS Fat Boy S Base 2016 to 2017
Harley Davidson_FLSTSB Cross Bones Base 2008 to 2011
Harley Davidson_FLTR Road Glide Base 2006 to 2013
Harley Davidson_FLTR Road Glide Base 2015 to 2016
Harley Davidson_FLTRU Road Glide Ultra Base 2011 to 2017
Harley Davidson_FLTRX Road Glide Custom Base 2010 to 2013
Harley Davidson_FLTRXS Road Glide Special Base 2015 to 2017
Harley Davidson_FXCW Rocker Base 2008 to 2009
Harley Davidson_FXCWC Rocker C Base 2008 to 2011
Harley Davidson_FXD Dyna Super Glide Base 2006 to 2013
Harley Davidson_FXDL Dyna Low Rider Base 2007 to 2017
Harley Davidson_FXDLI Dyna Low Rider Base_2006_
Harley Davidson_FXDWG Dyna Wide Glide Base 2006 to 2017
Harley Davidson_FXDWGI Dyna Wide Glide Base_2006_
Harley Davidson_FXS Blackline Base 2011 to 2013
Harley Davidson_FXSTB Night Train Base 2006 to 2009
Harley Davidson_FXSTC Softail Custom Base 2007 to 2010
Harley Davidson_FXSTD Softail Deuce Base 2006 to 2007
