Overview

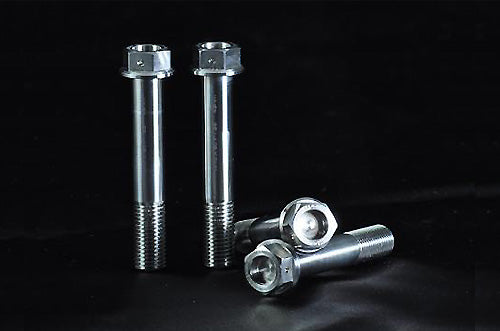

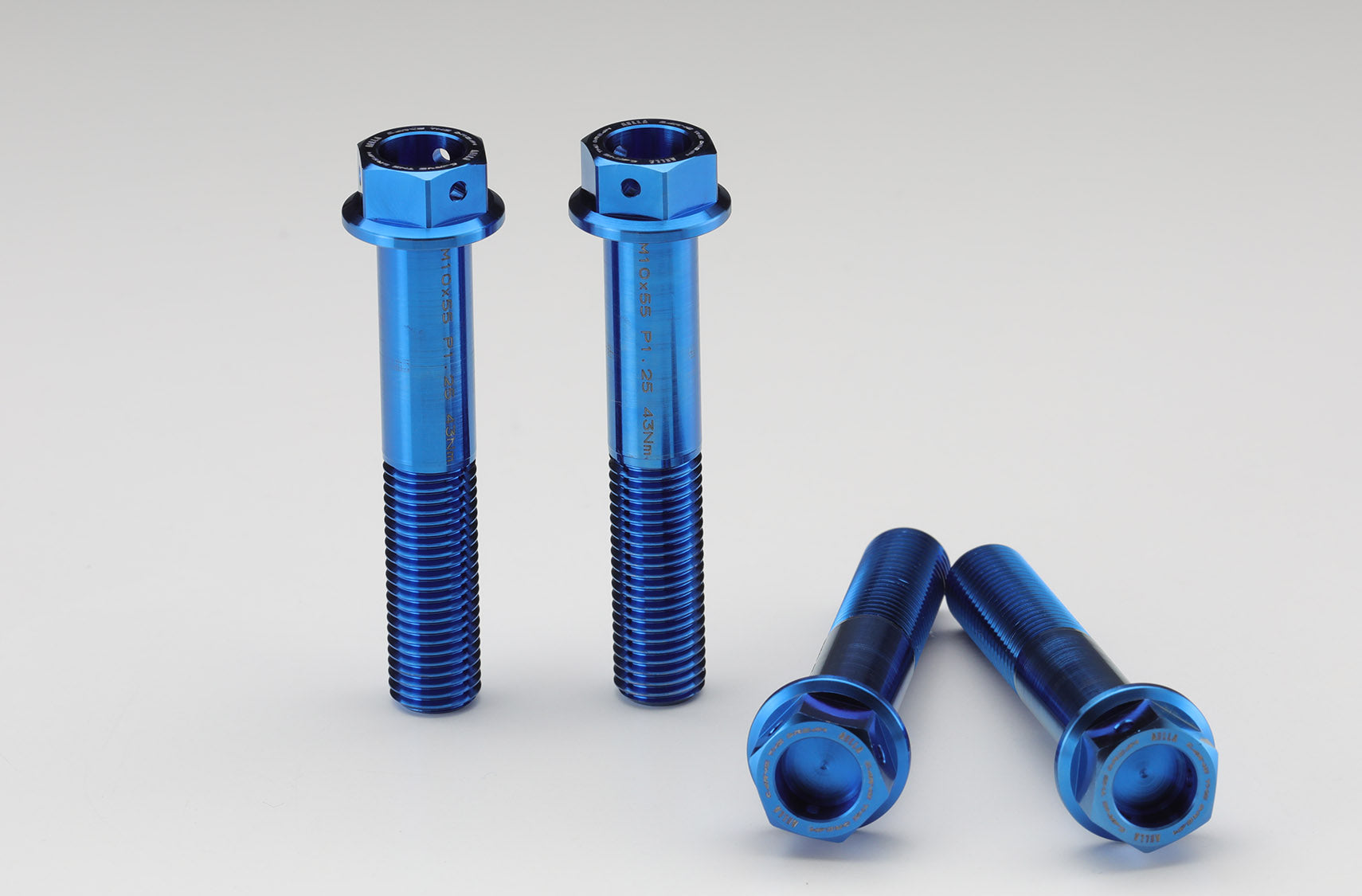

M10xL60 (P1.25)
sold as a 4 piece setTitanium alloy rich in strength, heat resistance and corrosion resistance, light weight (-22g per piece)
Predrilled for Safety wire - compatible with race regulation
Logo marking, size, Tightening torque stamp
* Please confirm that the diameter (10mm) and length (60mm) of the genuine bolt is before purchase.
AELLA titanium bolts are made by machining titanium.
The
seating surface is at a right angle to the bolt body with extremely
high accuracy, and the seating surface is wide, so the force to hold the

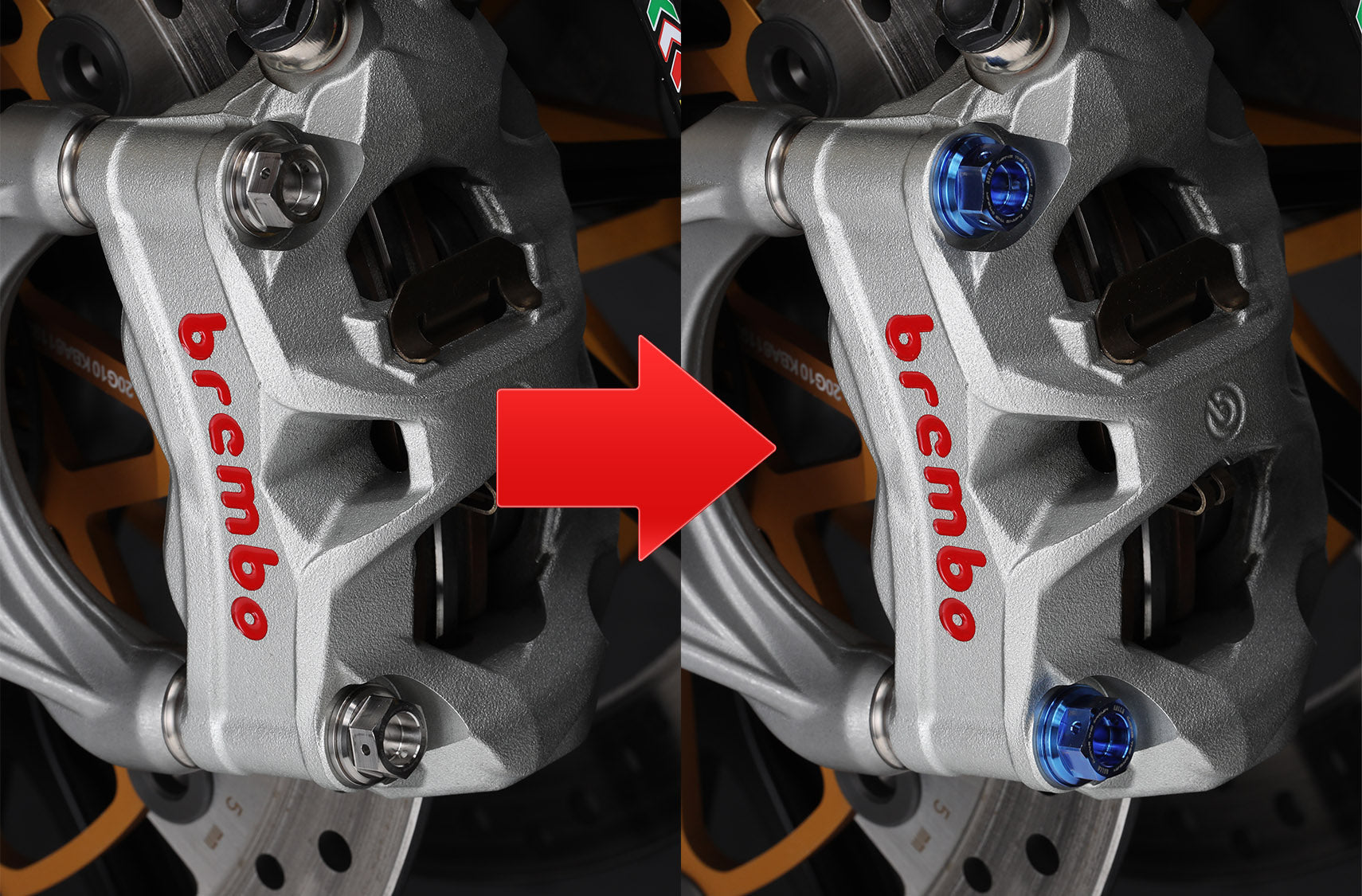

caliper differs even with the same fastening force as a genuine bolt. As a result, AELLA titanium bolts provides more stable braking:
Comparison with OE bolts. Naturally, the commitment to “fasten” is different from that of mass-produced products.
Since the fastening surface of the genuine bolt is not flat, a groove is formed on the caliper side:
AELLA titanium bolts are effective even when used alone, but when used in combination with a titanium washer AT-W0001, the caliper can be fastened in parallel with the disc, reducing brake drag and reducing resistance to wheel rotation
- Multistrada 1200 DVT conforms only to '17 model. ~ '16 conform to AT-DU002.
- Multistrada 1200S DVT will fit from '15 ~ model.
- Multistrada 1200 DVT Enduro conforms from '16 ~.
- Suitable from Multistrada 1200 DVT Pikes Peak '16 ~.
- Monster corresponds only to S4R ('07 ~) / S4RS ('06 ~), 1000S AT-DU003 conform.
- Only for 749R (2006) / 999R (2006) / 999R XEROX correspondence
- 2014/2015 Hypermotard SP, Hyperstrada is compatible with this part number. AT-DU002 conforms to other models.
